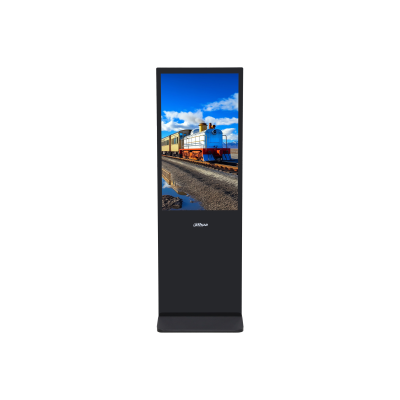

מסך ריצפתי לשילוט דיגיטלי 43" 24/7 DAHUA LDV43-SAI400L 4K

LCD Panel

Panel Dimensions

43 inch

Backlight

ELED

LCD Technology

IPS/VA

Aspect Ratio

9: 16

Brightness

320 cd/m² (typ.)

Contrast

IPS 1200:1(typ.) / VA 4000:1(typ.)

Display Colors

10 bit (8 bit + FRC), 1.07B colors

Resolution

2160 (H) × 3840 (V)

Viewing Angle

178° (H); 178° (V)

Response Time

8 ms (typ.)

Surface Treatment

Haze 25%

Built-in System

Operating System

Android 8.1

CPU

4 cores A17, 1.6 GHZ

RAM

2 GB

ROM

16 GB

Video Decoding

2-ch H.264 1080p@25 fps; 4-ch H.265 1080p@25 fps;

4-ch H.265 1080p@30 fps; 2-ch H.264 1080p@25 fps;

2-ch H.265 1080p@30 fps; 2-ch H.264 4K@25 fps;2-ch

H.265 4K@30 fps; 1-ch H.265 4K@60 fps; The decoding

capacity statistics are based on tests with a single video

file.

Function

Audio Compression

MPEG-3, WMA, WAV

Video Compression

MPEG-4, H.264/AVC, H.265/HEVC

Video Format

mp4, avi, mov, asf, mkv, wmv

Device Ports

Network Port

1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet

port

Wi-Fi

Optional (External Wi-Fi module)

Bluetooth

NO

Data Transmission Ports

1 × TF card slot, up to 128 GB (the back cover needs to

be open)

2 × USB 2.0 ports (type A)

Video Input

1 × HDMI 1.4 (1080p @60Hz) (the back cover needs to

be open)

Video Output

NO

Audio Port

1 × 3.5 mm jack Mic (the back cover needs to be open)

IR Receiver

Yes

Speaker

Built-in Speaker

2 × 5 W

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

≤ 80 W

Standby Power

Consumpton

≤ 0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operatng Humidity

10%–85% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Product Material

Metal casing

Casing Color (Frame/Rear)

Black

Product Dimensions

1800 mm × 600 mm × 460 mm (70.87" × 23.62" ×

18.11")

Packaging Dimensions

1920 mm × 762 mm × 200 mm (75.59" × 30.00" ×

7.87”)

Net Weight

41 kg (90.39 lb)

Gross Weight

51 kg (112.44 lb)

Installation

Vertical mount

Display Mode

Portrait

Accessory

Base, user's manual, power cord, legal and regulatory

information, remote control
