| Projection Technology | 3LCD Technology |
| Native Resolution |
1920 x 1200 (WUXGA)
|
| Aspect Ratio | 16:10 |
| Contrast Ratio 1 | 3000000:1 |
| Brightness 1 | 7100 Lm Normal / 7400 Lm Center / 6400 Lm Silent Mode |
| Lamp | Laser Light Source |
| Light Source Life [hrs] | 20000 2 |
| Lens | 5 manual lens options; 5 motorized lens options |
| Lense Adjustment | Motorized and manual (depending on lens) |
| Lens shift | H:±20, V:+50,-10 |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | depending on lens selection (std. option NP13ZL at 1.46-2.95:1) |
| Projection Distance [m] | 0.7 – 50.9 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 1,270 / 500"; Minimum: 101.6 / 40" |
| Zoom | Motorized and manual (depending on lens) |
| Focus Adjustment | Motorized and manual (depending on lens) |
| Supported Resolutions |
1080i/50/60;1080p/50/60;1280 x 768 (60);1920 x 1200 (60);3840 x 2160 (23.8/24/25/29.97/30);480p/60;576p/50;720p/60
|
| Frequency | Horizontal: analog: 0-0 kHz, digital: 15/24-100 kHz; Vertical: 50 – 120 Hz |
CONNECTIVITY

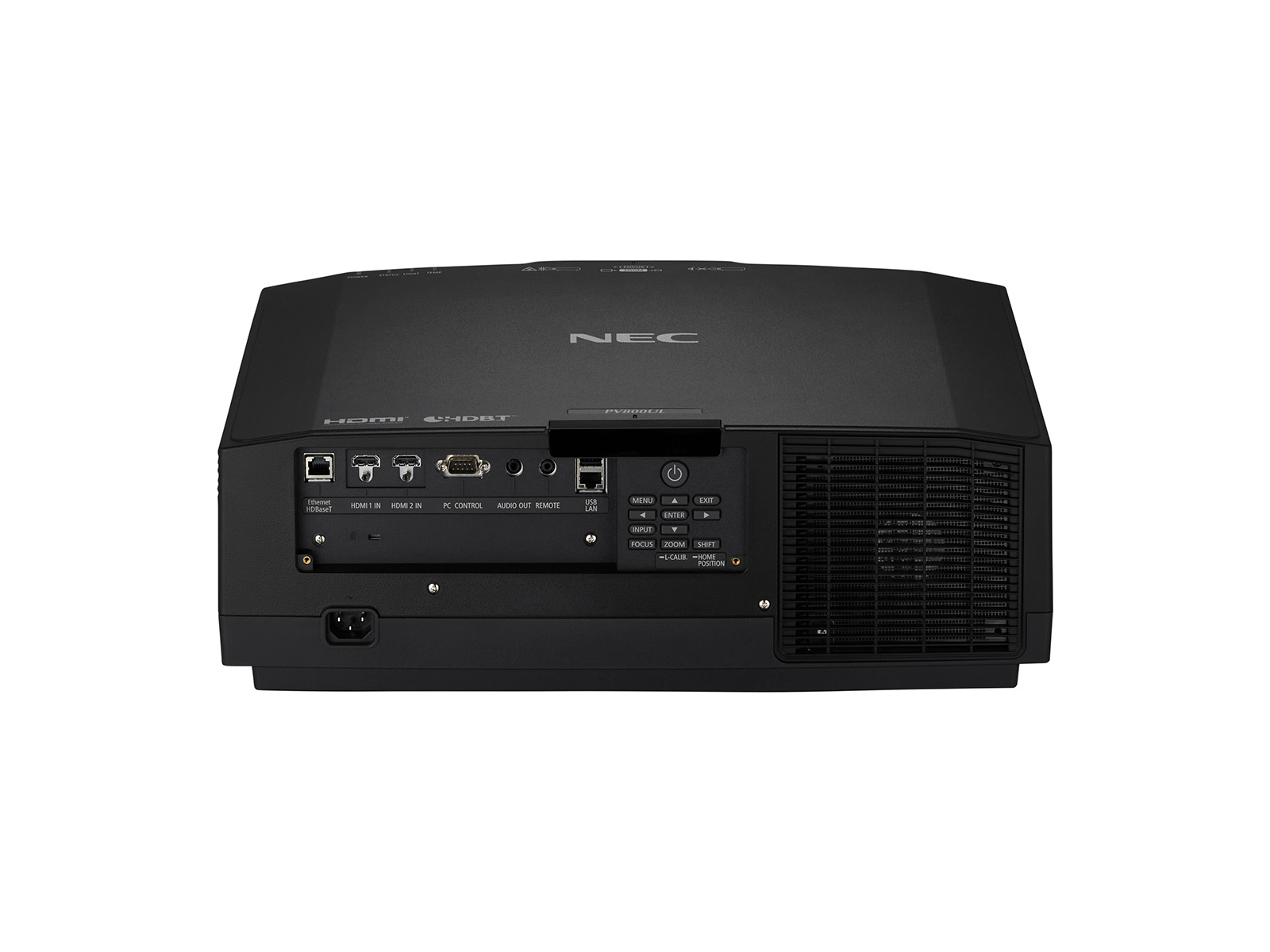

| Digital | Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4 |
| Audio | Input: 1 x HDBaseT audio support; 2 x HDMI audio support Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| Control | Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet |
| LAN | 1 x RJ45 |
| USB | 1 x Type A (USB 2.0 high speed) |
REMOTE CONTROL
| Input: | 1 x 3.5 mm Stereo Mini Jack |
| Remote Control | Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control |
ELECTRICAL
| Power Supply | 100-240 V AC; 50 – 60 Hz |
| Power Consumption [W] | 434.0 Normal / 392.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by |
MECHANICAL
| Dimensions (W x H x D) [mm] | 499 x 164 x 407 (without lens and feet) |
| Weight [kg] | 11.2 |
| Fan Noise [dB (A)] | 40 / 31 (Normal / Silent) |
| Colour Versions | Black; White |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | 0 to 40 |
| Operating Humidity [%] | 20 to 80 non-condensing |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 non-condensing |
ERGONOMICS
| Safety and Ergonomics | CE; EAC; ErP; RoHS; TUEV Type Approved |
ADDITIONAL FEATURES
| Special Characteristics | AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life |
GREEN FEATURES
| Energy Efficiency | ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function |
| Ecological Materials | 100% recyclable packaging; Downloadable manuals |
| Ecological Standards | ErP compliant |
WARRANTY
| Projectors | 3 years pan-European service |
| Light Source | 3 years or 10000h (whatever comes first) |
SHIPPING CONTENT
| Shipping Contents | IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide |
OPTIONAL ACCESSORIES
| Optional Accessories | 10 optional bayonet lenses; Air Filter (NP-06FT); Cable Cover (NP10CV, NP10CV-B); Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF) |
| Lenses – motorized | NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML (0.32:1); NP50ZL (0.6-0.75:1) |
| Lenses – manual | NP11FL (0.79:1); NP12ZL (1.16-1.52:1); NP13ZL (1.46-2.95:1); NP14ZL (2.9-4.68:1); NP15ZL (4.59-7.02:1) |
