Specifications
Panel
Screen Size86"
Panel TechnologyIPS
Backlight TypeDLED
Brightness (typical)400 cd/m²
Native Resolution3840 x 2160 (16:9) – UHD
Contrast Ratio (typical)1200:1 (typ.)
Dynamic Contrast Ratio40000:1
Panel Life Time ( Min. )50000 Hrs
Response Time (typical)8 ms
Active Area (H x V)1895 (H) x 1066 (V) mm
Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value1.07G (8bits + FRC)
Color Gamut72% NTSC
Haze Level25%
Refresh Rate60 Hz

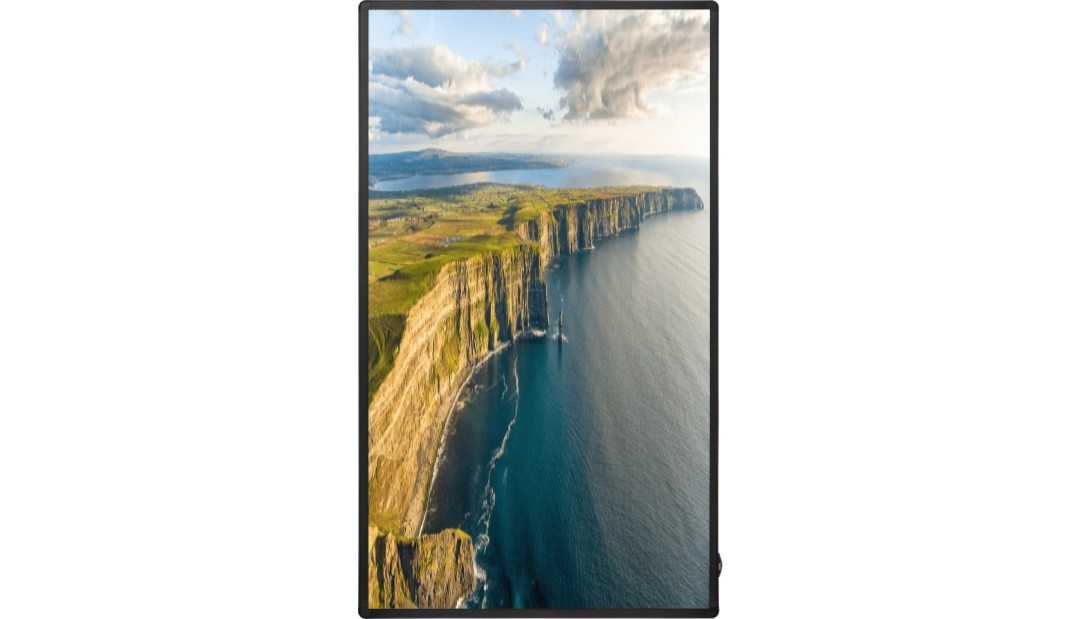

OrientationLandscape-Portrait
Operation Hours24/7
Area of UsageIndoor
Built-in System
Mainboard Model17MB400VS
Operating SystemCustom OS (built on Android AOSP)
Memory2 GB DDR4
Storage16 GB eMMC
Additional StorageMicro SD (up to 1TB)
CPUQuad-Core ARM Cortex-A55
GPUARM Mali-G31 MP2
Wired10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication
WiFiWiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
BluetoothBT 5.1
HTML5 BrowserVewd
Wireless DisplayMiracast
Monitor Connectivity
Video Input4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0
Video Output1xHDMI2.0
Audio OutputHeadphone, Optic SPDIF
External ControlRS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
External SensorRJ12
Mechanical
Product Dimensions (WxDxH)1962 x 79 x 1133 mm
Package Dimensions (WxDxH)2163 x 380 x 1490 mm
Product Weight62 kg
Package Weight83 kg

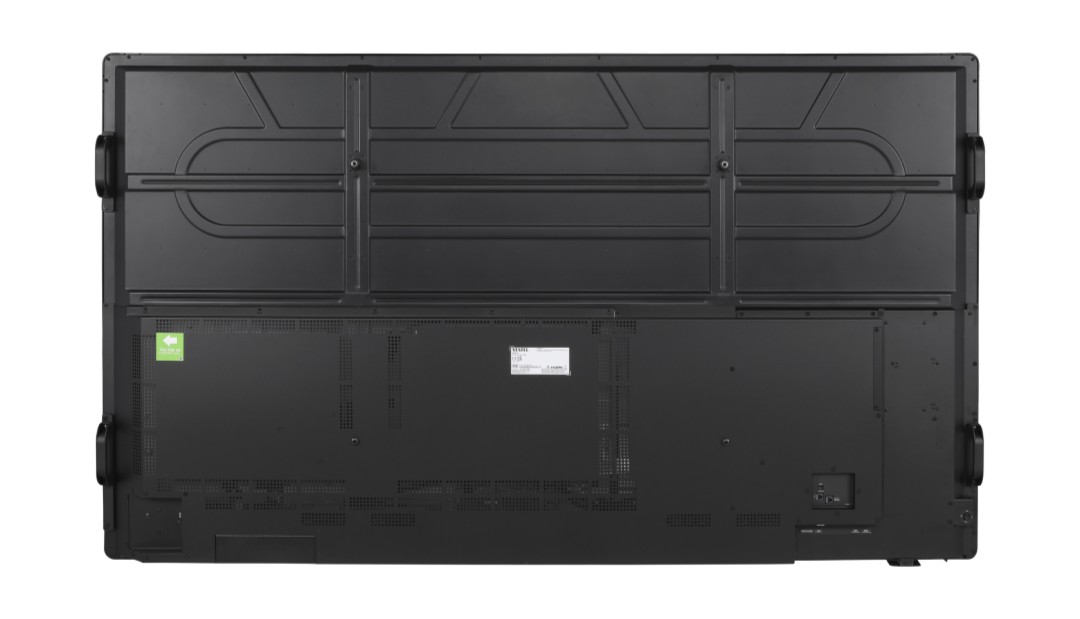

Vesa Mounting800 (W) x 600 (H) mm M8
Bezel WidthB/T/L/R: 25 mm
Environmental Conditions
Operating Temperature0-40°C
Operating Humidity10-90%
Power
Power Supply110 VAC – 240 VAC – 50/60 Hz
Power Consumption
Typical214W
Maximum400 W
Deep Standby≤0.5 W
Features
Main FeaturesHTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
Mechanical FeaturesJoystick Keyboard, Rocker Switch, Detachable Power Cable
Speaker2×12 W
Accessory
StandardQSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
SafetyYes
EMCYes
CEYes
