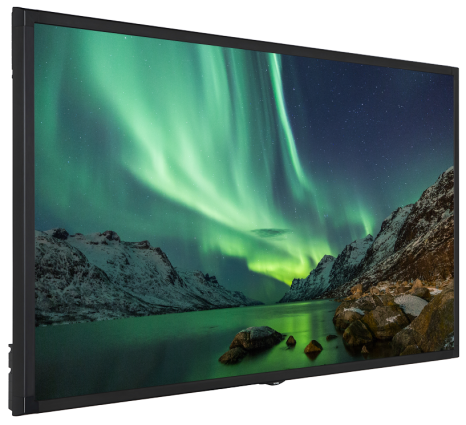

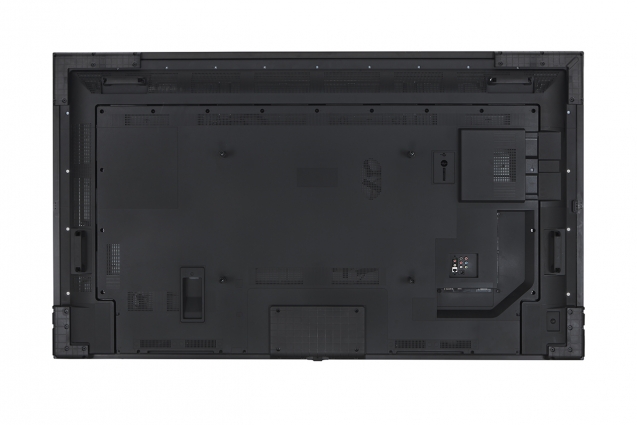

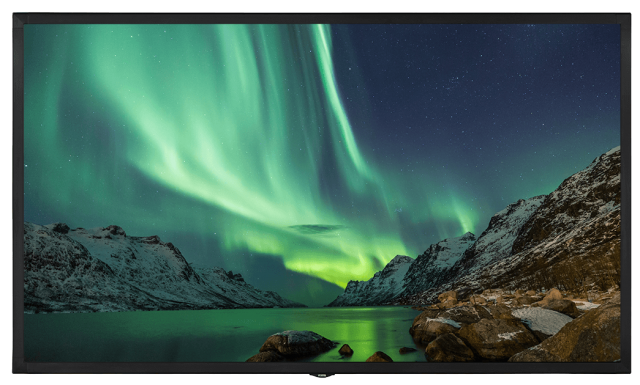

IFD55TH652/3
- Resolution : 3840×2160 (UHD)
- Brightness : 400 cd/m2
- Touch Points : 10 Points Multi Touch
- Touch Techology : IR Touch
- Interface : HDMI 2.0 / VGA / USB /RS232 / RJ45 / RJ12 for sensors / IR /HP / Audio / Speaker
- Application Area: Education
Panel
Screen Size55"
Panel TechnologyIPS
Backlight TypeDirect-Type LED
Brightness (typical)400 cd/m²
Native ResolutionUHD: 3840 x 2160 – HDR10
Contrast Ratio (typical)1300:1
Dynamic Contrast Ratio40000:1
Panel Life Time ( Min. )30000 Hr
Response Time (typical)6 ms
Active Area (H x V)1210 x 681 mm
Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value16.7 M (8-bit)
Screen Treatment2H
Haze Level8%
Refresh Rate60 Hz
Front TypeBlack Super Narrow Bezel
OrientationHorizontal
Operation Hours16/7
Area of UsageIndoor
Built-in System
Mainboard Model17MB135VS
Monitor Connectivity
RGB InputVGA(DE-15F)
RGB OutputN/A
Video Input3xHDMI2.0, 2xUSB2.0, USB2.0(Internal), 1xMicroSD
Video OutputHDMI2.0
Audio InputLine In L/R
Audio OutputHeadphone, Optic SPDIF
External ControlRS232(DE-9F), 2*Ethernet(RJ45), Service(RJ12)
External SensorRJ12
Touch Interactivity
Type of Touch TechnologyInfrared (IR) Technology
Continuous Touch Points10 Points
SensitivityAny touch with finger, gloved hand or pointer
ConnectivityHID, TUIO, Flash
CompatibilityWindows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
OrientationLandscape support
CalibrationNo need
Accuracy%90 <
Reporting RateUp to 450 fps
Glass TypeAnti Glared (AG), 4mm Tempered
Frame Rateup to 450 fps
CommunicationUSB 2.0
Power Supply ModeUSB
Supply VoltageDC 5V +/- 5%
Average Current<400mA
Response Time<10ms
Touch Accuracy+/-2mm (over 90% area)
Touch DurabilityUnlimited
HID CompatibilityYes USB
Object Sizes for Touch5mm
Mechanical
Product Dimensions (WxDxH)1280 x 123 x 751 mm
Package Dimensions (WxDxH)1480 x 265 x 930 mm
Product Weight29.45 kg
Package Weight38.15 kg
Vesa Mounting400 x 200 mm
Bezel WidthB:34 | T:34 | L/R:34 mm
Environmental Conditions
Operating Temperature+40°C / 0°C
Operating Humidity90%
Power
Power Supply90% 110 VAC – 240 VAC
Power Consumption
Typical138 W
Maximum180 W
Deep Standby≤0.5W
Features
Main FeaturesUSB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical FeaturesIR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional FeaturesOPS Compliance
Speaker2 x 8 W
Accessory
StandardQSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
SafetyYES
EMCYES
CEYES
Reability ApprovalYES
