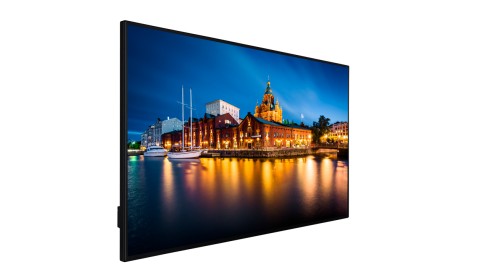

PF Series
PF50B-2
- Resolution: 3840×2160 (UHD)
- Brightness: 500 cd/m²
- Operation: 16/7
- OPS/SDM/NUC Module Support
- Embedded IR/IR Extender Options
- 30° Tilting Installation
- Application Areas: Retail, QSR, Corporate, Control Rooms, TransportationPanel
Screen Size50"Backlight TypeSlim DLEDBrightness (typical)500 cd/m²Native Resolution3840 x 2160 (16:9) – UHDContrast Ratio (typical)5000:1(typ.)Dynamic Contrast Ratio50000:1Panel Life Time ( Min. )50000 HrsResponse Time (typical)9.5 msActive Area (H x V)1095.84 x 616.41Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10Color Value1.07BScreen Treatment3HHaze Level3%Refresh Rate60HzOrientationLandscapeOperation Hours16 / 7Area of UsageIndoor
Built-in System
Mainboard Model17MB135VSMonitor Connectivity
RGB InputVGA(DE-15F)RGB OutputN/AVideo Input2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)Video OutputN/AAudio InputLine In L/RAudio OutputHeadphone, Optic SPDIFExternal ControlRS232(DE-9F), Ethernet(RJ45), Service(RJ12)External SensorRJ12Mechanical
Product Dimensions (WxDxH)1121 x 83 x 646 mm with OPS/SDM 1121 x 63 x 646 mm without OPS/SDMPackage Dimensions (WxDxH)1215 x 165 x 775Product Weight12.8 kgPackage Weight16.8 kgVesa Mounting200 mm(W) x 200 mm(H) M6Bezel Width9/9/9/13 mmEnvironmental Conditions
Operating Temperature0-40°COperating Humidity10-90%Power
Power Supply110 VAC – 240 VAC – 50/60 HzPower Consumption
Typical121 WMaximum160 WDeep Standby≤0.5 WFeatures
Main FeaturesOpen Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time ClockMechanical FeaturesJoystick, Rocker Switch, Detachable Power Cable, Dettachable Logo, Internal Usb Cover, 30-degrees Tilting InstallationOptional FeaturesSDM or OPS compatibility, Embedded IR, IR extender optionSpeaker2×10 WAccessory
StandardQSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cableCertification
SafetyYesEMCYesCEYes
