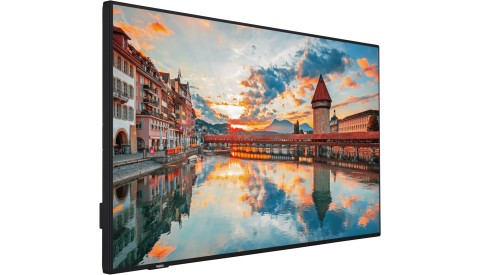

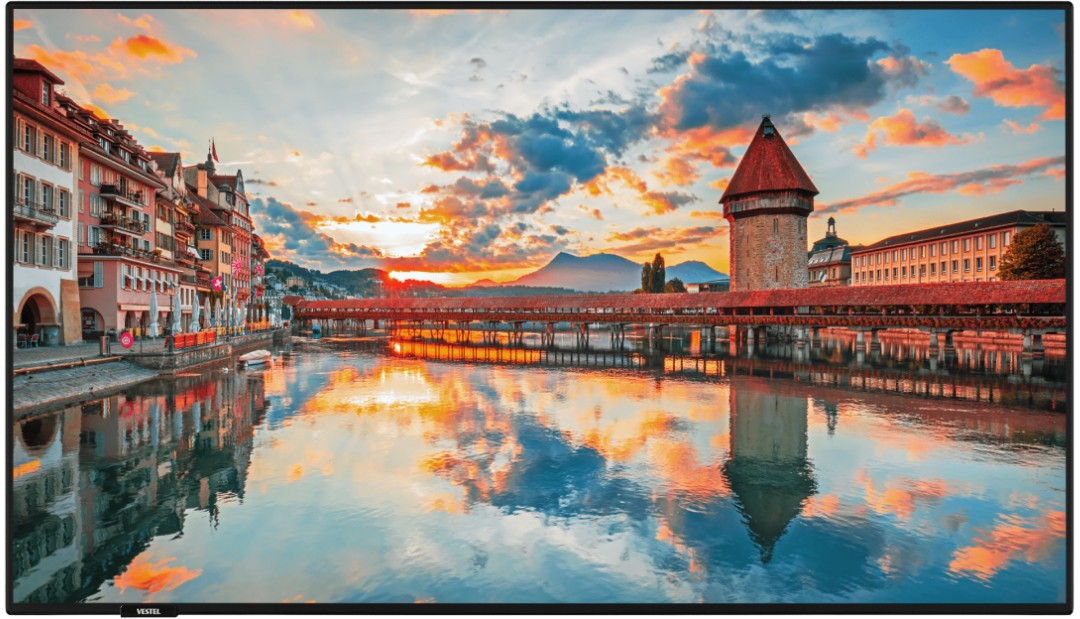

PN43D-4H
Android 9 powered SoC
2 GB DDR4 / 16 GB eMMC
Resolution: 3840×2160 (UHD)
Brightness: 500 cd/m²
Operation: 24/7
Embedded IR/IR Extender Options
30° Tilting Installation
Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation
Panel
Screen Size43"
Panel TechnologyIPS
Backlight TypeSlim DLED
Brightness (typical)500 cd/m²
Native Resolution3840 x 2160 (16:9) – UHD
Contrast Ratio (typical)1200:1 (typ.)
Dynamic Contrast Ratio50000:1
Panel Life Time ( Min. )50000 Hrs
Response Time (typical)8 ms
Active Area (H x V)941.1 (H) × 529.4 (V) mm
Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value1.07G (8bits + FRC)
Color Gamut72% NTSC
Haze Level1%
Refresh Rate60 Hz
OrientationLandscape / Portrait
Operation Hours24/7
Area of UsageIndoor
Built-in System
Mainboard Model17MB400VS
Operating SystemAndroid 9
Memory2 GB DDR4
Storage16 GB eMMC
Additional StorageMicro SD (up to 1TB)
CPUQuad-Core ARM Cortex-A55
GPUARM Mali-G31 MP2
Wired10/100/1000 Mbps Ethernet, IEEE 802.1X Authentication
WiFiWiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
BluetoothBT 5.1
HTML5 BrowserVewd
Wireless DisplayMiracast
Monitor Connectivity
Video Input4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
Video Output1xHDMI2.0
Audio OutputHeadphone, Optic SPDIF
External ControlRS232 (3.5mm jack green), Gigabit Ethernet (RJ45), Service (RJ12)
External SensorRJ12

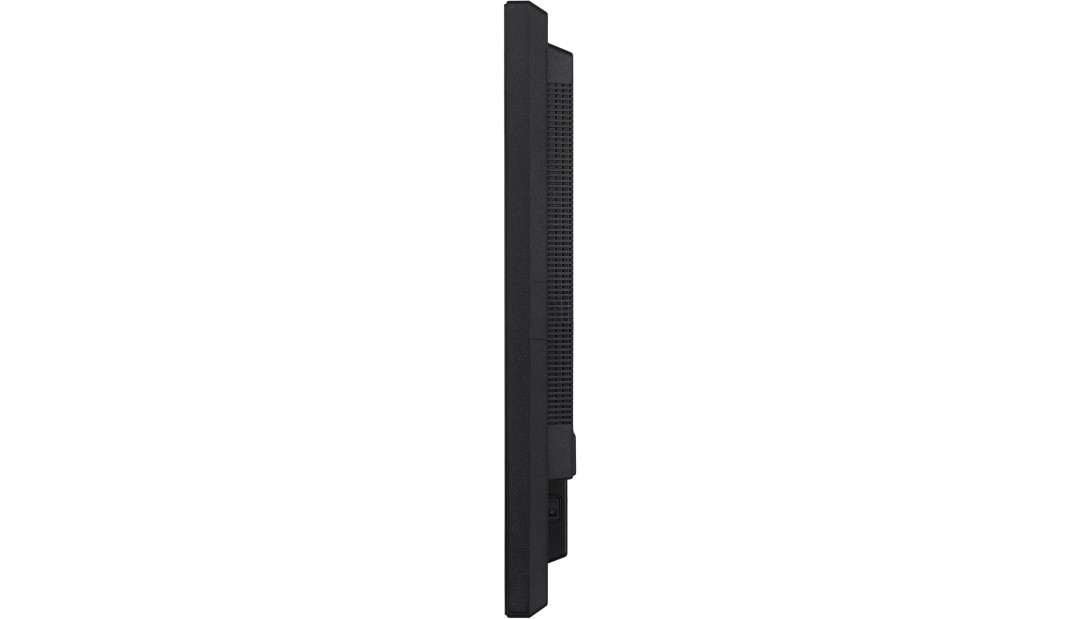

Mechanical
Product Dimensions (WxDxH)963 x 63 x 555 mm
Package Dimensions (WxDxH)1050 x 178 x 718 mm
Product Weight10.4 kg
Package Weight13.5 kg
Vesa Mounting200 (W) x 200 (H) mm M6
Bezel WidthB: 9 mm, T/L/R: 6 mm
Environmental Conditions
Operating Temperature0-40°C
Operating Humidity10-90%
Power
Power Supply110 VAC – 240 VAC – 50/60 Hz
Power Consumption
Typical127 W
Maximum160 W
Deep Standby≤0.5 W
Features
Main FeaturesHTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, Crestron Connected, SNMP
Mechanical FeaturesJoystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover
Speaker2×8 W
Accessory
StandardQSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
SafetyYes
EMCYes
CEYes
